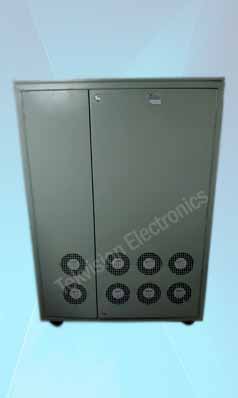

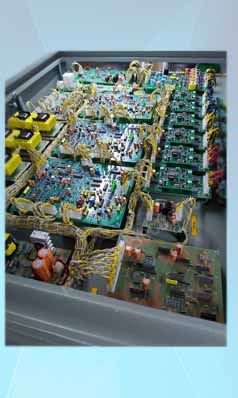

100 KVA ONLINE UPS

Tekvision UPS are based on IGBT PWM technology (pure sine wave) with Galvanic Isolation between Mains and Load and offer high performance, high reliability and sophisticated control systems.

Products - 100 KVA ONLINE UPS - Dimensions in mm 1050 (Width) X 800 (Depth) X 1500 (Height)

Product Overview

Tekvision Electronics is proud to present 100% “Made in India” UPS for Industrial applications designed and perfected for extreme Indian environmental and Power conditions. Tekvision UPS are trusted for critical applications viz. Data Centers, Mobile shelters, Network Centers, Medical & Healthcare Centers,Labs, Offices, Factories, Housing Societies, Banks & Insurance, ATM, Institutions, Printing Press, Colour Labs, Controll Rooms, etc.

Tekvision UPS are based on IGBT PWM technology (pure sine wave) and offer high performance, high reliability and sophisticated control systems.



*.True ONLINE double conversion Power recreation.

*.Sine weighted high frequency PWM Inverter using IGBTS.

*.Galvanic Isolation between Mains and Load.

*.Dual Step, Low ripple, CV / CC charging for extra long life of Batteries.

*.Quiet Operation.

*.High Overload Capacity and Crest Factor tolerence.

Tekvision is equipped with state of the art test set up that includes:

Loaded with Buck-Boost TXR, 3-Ph Dimmer and Meters capable of testing of 1-PH and 3-PH UPS system. LOAD Bank: For 1-PH & 3-PH UPS Load Testing. In-house TXR Winding: Capable of winding OPTs / Chokes.


Read More

Double-Conversion type of UPS: Superior Power Protection from power quality

*.problems such as Surge, Blackout, Brownout, Voltage Sags, Over Voltage, Frequency Noise, Frequency Variation, Harmonic Distortion.

*.Greater robustness with respect to back feed protection such as motors, industrial devices without disruption.

*.Galvanic isolation between Mains Power Supply and Load.

*.Sine weighted high frequency PWM Inverter using IGBTs.

*.True Sine Wave output.

*.Quiet Operation.

*.High Overload Capacity and High Crest Factor tolerance.

*.Flexibility in Number of Batteries Selection: 4/6/15/16/25/29/34 Batteries option.

*.Use of Indigenous Components.

Read More

Standard Systems

INPUT OUTPUT POWER RATINGS (KVA)
SINGLE PHASE SINGLE PHASE 3, 6, 12
THREE PHASE SINGLE PHASE 12, 15, 20, 30, 45
THREE PHASE THREE PHASE 12, 15, 20, 30, 45, 80

Specification (P-Series)

Parameters :

3 / 6 / 12 / 15 / 20 / 30 / 45 / 80 KVA Online UPS

UPS details

Topology

IGBT Based PWM Technology double conversation true Sine Wave Online UPS

Output Power Capacity

1-PH to 1-PH: 3/6/12 KVA | 3-PH to 1-PH: 12/15/20 KVA | 3-PH to 3-PH: 12 / 15 / 20 / 30 / 45 / 80 KVA

Specifications

Input

Phase

Single Phase 2 Wire with E arth | Three Phase + Neutral

Voltage

1-PH: 230 | 3-PH: 41 5 V AC

Voltage Range

1-PH: 165V - 270 | 3-PH: 310 - 470 V AC

Frequency Range

47 - 53 Hz

Power Factor

>0.92

Current THD

<10%

Battery

Nominal Voltage

1-PH: 180/192V (12V X 15 or 16 Nos) | 3-PH: 348 - 408V (12V X 29 or 34 Nos)

Charging Current Maximum

1-PH: 4 A | 3-PH: 10A

Battery Charging Method

Dual Step (Float/Boost), Low Ripple Constant Voltage & Constant Current Battery Charging

Output

Nominal Output Voltage

1-PH: 220/230/240 | 3-PH: 380/400/415 VAC ± 1% (Field Adjustable)

Frequency

50Hz ± 0.1Hz

Waveform

True Sine Wave

THDv

<2% Linear Load)

Crest Factor

3:1

Load Power Factor

0.8 lag or better

Overload Capacity

200% for 20 mSec

Protections

Input Over Current

Input Over / Under Voltage

Battery Over /Under Voltage

Over Temperature

Output Over / Under Voltage

Output Overload / Short Circuit

Visual Indications & Audible Alarms

LED

MAINS / BATTERY / INVERTER / LOAD

DISPLAY

Output Voltage / Output Load %

AUDIBLE ALARM

Over Load / Mains Fail / Battery low / Over temperature/ Short circuit

Physical Characteristics

Operating Temp

0~45°C Continuous

Relative Humidity

10-95% RH non-condensing

Noise Level

< 50 dBA at 1 meter

Mechanical

Ingress Protection (IP)

IP 21

Cooling Dimension (W x D x H) in mm

Forced Air

Weight in KG

< 1-PH: 330 x 490 x 590 or 400 x 600 x 900 | 3-PH: 550 x 850 x 1100 or 600 x 900 x 1200

Note :

1-PH: 60 / 90 Kg | 3-PH: 200 Kg

Products upgrading is a continuous process, hence data in this Product Catalogue is subject to change without prior notice. These specifications are for a Standard Product. Customized specifications can be offered against specific requirements.

NEED OF ONLINE UPS FOR CNC MACHINES

  • product
    In case of Power failure, there is Production loss as well as loss of raw material. If the raw material used in production line is expensive then UPS is must.
  • product
    There are Voltage fluctuations, High Voltage spikes, burnout, Frequency drift etc. in input Electricity Power supply, due to which CNC machine trips or electronic parts / Software storage inside CNC machine are damaged. UPS protects CNC machine from all such Electrical hazards and also increases life of CNC machine.

  • product
    UPS gives galvanic isolation between Power Supply Input and UPS Output. The operation of online UPS's mean that the normal mains is rectified into DC which charges a battery and also supplies an inverter which turns the DC back into AC. This process means that any fluctuations on the normal mains supply will not be seen on the output as the output is an electronically generated waveform.
  • product
    To minimize down time due to Power failure. UPS supplies Power during power failure. An online UPS's main purpose is to continue to supply power when the mains power has failed using a battery backup.

ADVANTAGES OF ONLINE UPS OVER STABILIZER IN CNC MACHINES

  • product
    Stabilizer is a device which control the voltage fluctuations whereas UPS is a device which protects CNC machine from fluctuations and also provide backup on the basis of battery rating.
  • product
    A voltage stabilizer is a device that stabilizes voltage. More often, it is called a line filter. It prevents transients (high voltage spikes etc.) from making it through to the delicate CNC machine connected to it. A UPS (Uninterruptible Power Supply), on the other hand, provides power (for a short period of time - often 15 minutes) when the main power source goes down. This gives you a chance to do a proper shutdown, such as saving files and stopping the CNC machine the correct way.

  • product
    A voltage stabilizer is a device to keep the voltage to your CNC machine at a set level. So if the input voltage is fluctuating, the output will be regulated to within 1% or so. However if the input power should fail or go out of the tolerance of the stabilizer (<170V or >270V) then power to the CNC machine is lost. An UPS primary function is back up power, so this is the main difference. When the input power fails or goes out of tolerance the UPS will switch to battery power thereby maintaining power to the load.
  • product
    Voltage stabilizer has its own limitations. It does not provide isolation between input and output power. It will not protect CNC machine from Voltage spikes, frequency drift etc.  If you have an UPS, you will not need a separate stabilizer. But it is not vice versa.
